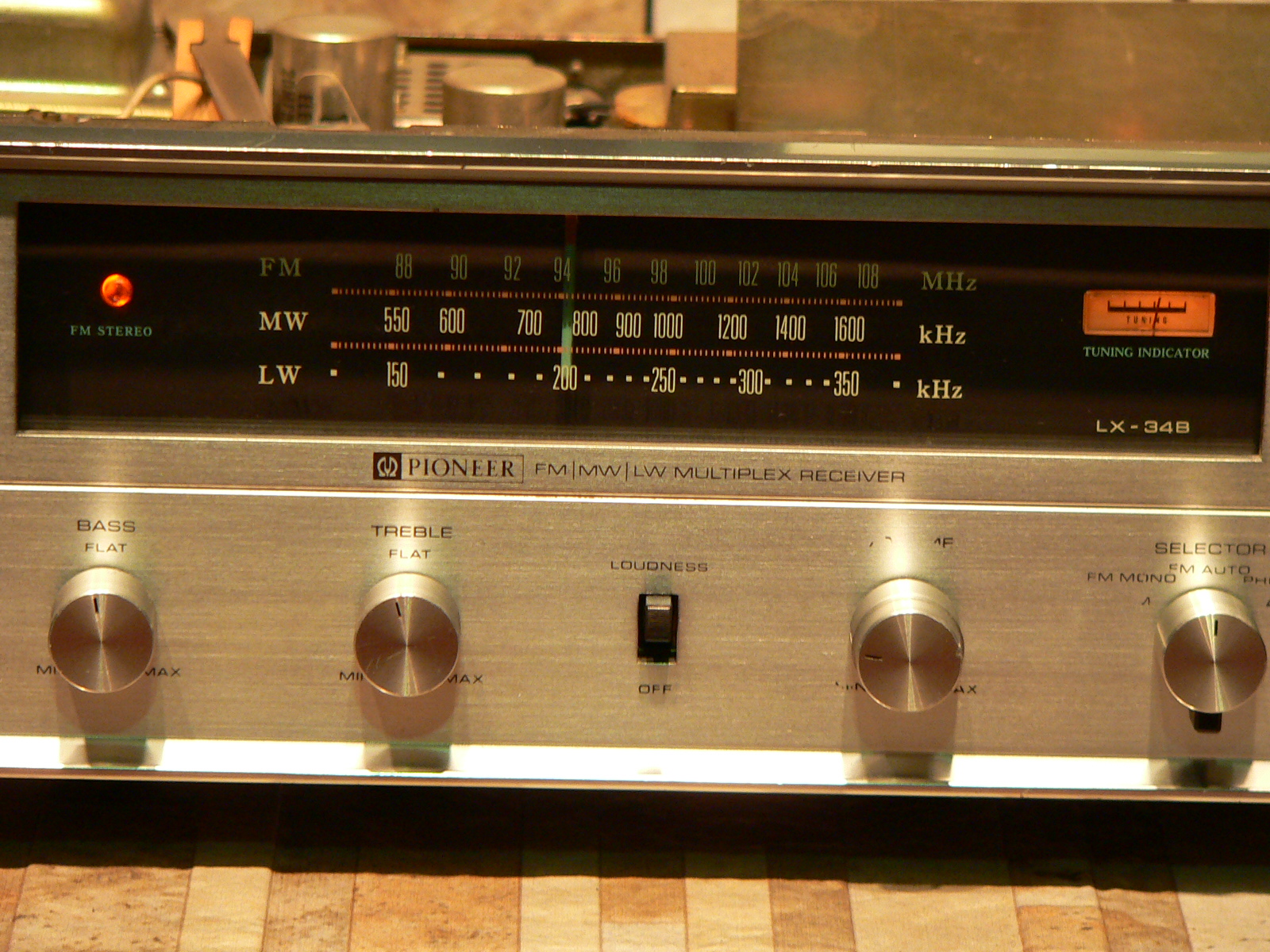

RECEIVER PIONEER LX-34B VALVULAR -SIN STOCK-

Specifications

Tuning range: FM, MW

Power output: 34 watts per channel into 4¿ (stereo)

AÑO FABRICACION 1969

UNA JOYA MUY RARA DE VER DE COLECCION

CON TODAS SUS VALVULAS HITACHI

BANDEJA AKAI AP-003 JAPAN -SIN STOCK-

Platter: 300mm aluminium alloy diecast

Drive system: belt drive

Motor: 4-pole synchronous

Speeds: 33 and 45rpm

Wow and flutter: 0.05% wrms

Signal to noise ratio: 52dB

Tonearm: static balance type tubular arm

Effective length: 215mm

Overhang: 9.4mm

Cartridge weight range: 4 to 9.5g (9.5 to 15g with sub weight)

Dimensions: 440 x 123 x 358mm

Weight: 6.8kg

POTENCIA Y PRE YAMAHA M-4 Y C-4 -SIN STOCK-

Specifications

Power output: 120 watts per channel into 8Ω (stereo)

Frequency response: 1Hz to 100kHz

Total harmonic distortion: 0.005%

Damping factor: 200

Input sensitivity: 1V

Signal to noise ratio: 118dB

Speaker load impedance: 4Ω to 8Ω

Semiconductors: 81 x transistors, 3 x IC, 2 x dual FET, 34 x diodes, 2 x bridged diodes, 2 x zener diodes, 28 x LED

Dimensions: 435 x 145.5 x 374.5mm

Weight: 18.5kg

Year: 1980

AMPLIFICADOR Y SINTO KENWOOD KA-300 Y KT-400 JAPAN -SIN STOCK-

Specifications
Power output: 25 watts per channel into 8 (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.09%

Damping factor: 50

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 78dB (MM), 100dB (line)

Output: 150mV (line)

Speaker load impedance: 4 to 16 HOMS

Dimensions: 400 x 139 x 341mm

Weight: 5kg

BANDEJA FISHER MT-6355 TOPE DE LINEA QUARTZ DIREC DRIVER -SIN STOCK-

Description

The MT-6330 is a highly sophisticated turntable developed by Fisher to give many years of listening enjoyment.

The deck features Linear Drive, a novel engineering approach to the difficult task of rotating a turntable accurately and without undesirable drift is featured in this unit.

This drive employs 120 magnetic poles instead of the usual 4 to 24.

This achieves a completely uniform rotation and virtually eliminates wow and flutter as well as rumble.

Specifications

Motor: 120 pole linear

Drive system: direct

Wow and flutter: 0.035% WRMS

Rumble: -70dB

Speed variation: +-3%

Tracking force: 2g

Platter: 314mm

Platter weight: 1.0kg

Speeds: 33 and 45rpm

Tonearm: S-form

Effective length: 222mm

Cartridge: MG-35V stereo magnetic

Dimensions: 440 x 380 x 138mm

Weight: 6.2kg

LINK DEL MANUAL

http://www.vinylengine.com/library/fisher/mt-6330.shtml

AMPLIFICADOR LUXMAN L-4 JAPAN -SIN STOCK-

Specifications

Power output: 55 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.02%

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 92dB (MM), 95dB (line)

Channel separation: 70dB (MM), 80dB (line)

Dimensions: 438 x 289 x 105mm

Weight: 9.5kg

CD PLAYER PIONEER ELITE PD-71 -SIN STOCK-

Specifications

Disc format: CD

Digital converter: 2 x PCM58P-K

CD Mechanism: PWY1006

Frequency response: 2Hz to 20kHz

Dynamic range: 99dB

Signal to Noise Ratio: 112dB

Channel separation: 108dB

Total harmonic distortion: 0.002%

Line output: 2V

Digital outputs: coaxial, optical

Dimensions: 457 x 324 x 127mm

Weight: 9.5kg

Accessories: remote control

Year: 1989
