Description

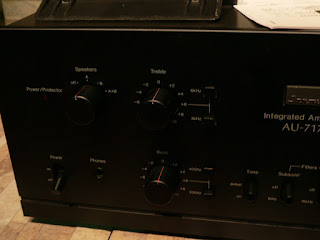

The AU-717 amplifier incorporates an advanced design feature which has extremely low inherent transient intermodulation distortion enabling negative feedback (necessary in traditional amplifier design but undesirable) to be reduced to the absolute minimum.
Power amplifier design too, shows a departure from tradition resulting in the elimination of DC drift.
Differential push/pull amplifier stage eliminates open-loop distortion. The driver stage is 3-stage darlington connected.
Specifications
Power output: 85 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.025%
Damping factor: 60
Input sensitivity: 2.5mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 100dB (line)
Channel separation: 60dB (MM), 65dB (line)
Output: 150mV (line), 1V (Pre out)
Speaker load impedance: 8Ω (minimum)
Dimensions: 430 x 168 x 389mm
Weight: 17.8kg
Year: 1978
LINK DEL MANUAL
